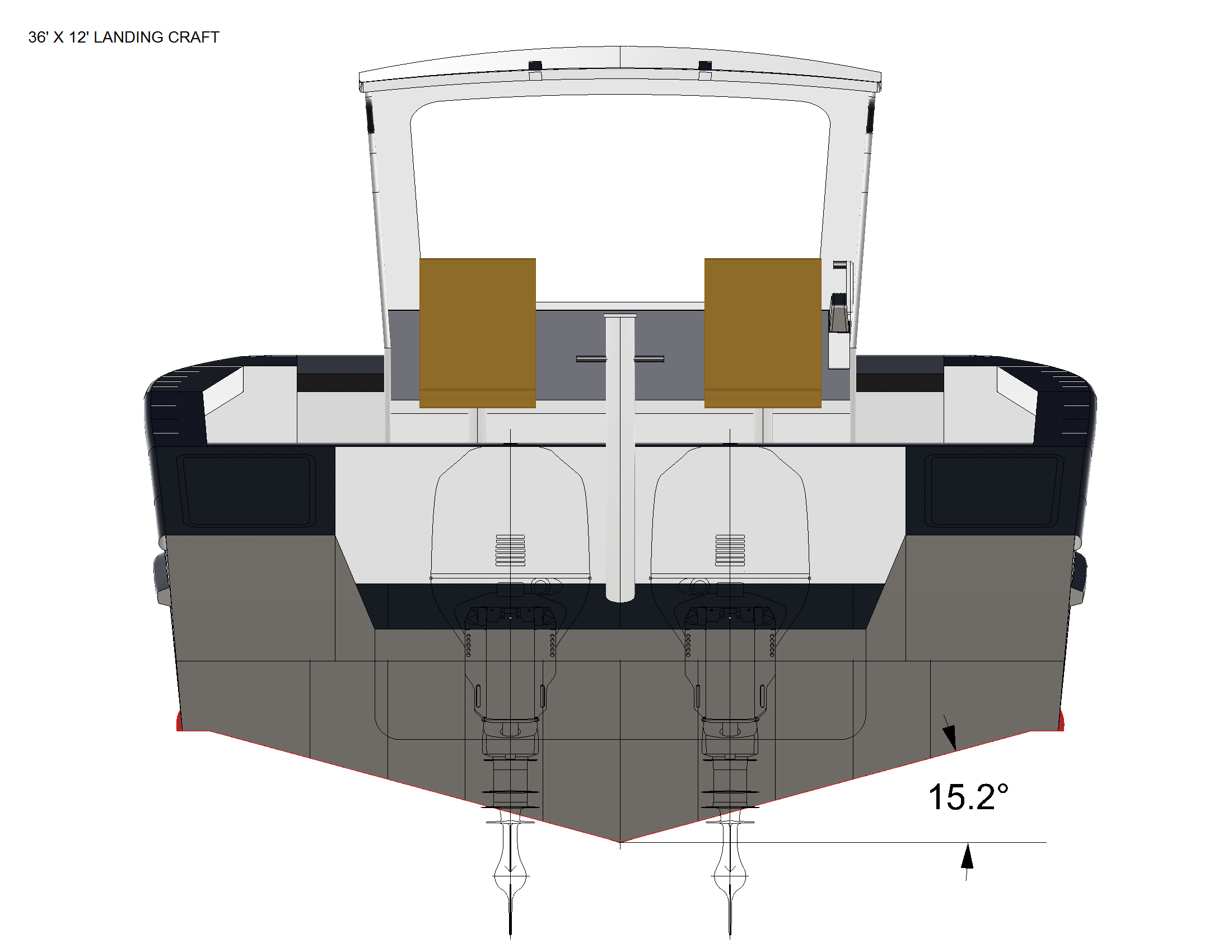

36' X 12' LANDING CRAFT CONCEPT FOR LEE SHORE BOATS
This vessel is designed for a recent inquiry at Lee Shore Boats. This vessel is intended as a high speed utility vessel to carry payloads up to 10,000 lbs. 42 mph top speed is acheived with twin 250 hp Honda outboard motors. The cargo deck is approximately 24' long x 11.5' wide. The bow door has an 100" wide clear opening. Several different console/cab arrangements are possible. The one pictured is a 3 window cab 6' wide x 5' long with two pedestal seats and an open back. There is a 10" step up to the aft deck and two 15" x 24" Freeman hatches are included in the raised deck. It is built primarily from 5086 and 5052 aluminum. The hull bottom, framing and deck are 1/4" thick, the topsides are 3/16" thick.
SPECIFICATIONS
